In planning to migrate phone traffic from PRI to SIP, we decided to use an existing pair of session border controllers (SBCs) that were already in production for another (smaller) deployment. Before cutting over the whole organization’s voice traffic, I revisited the (3-year old) network design. While the two SBCs are in separate datacenters in separate buildings, each SBC is only single-homed. This means that there is SBC high-availability in terms of new calls, but existing calls will be dropped if there is a failure or maintenance on the switch.

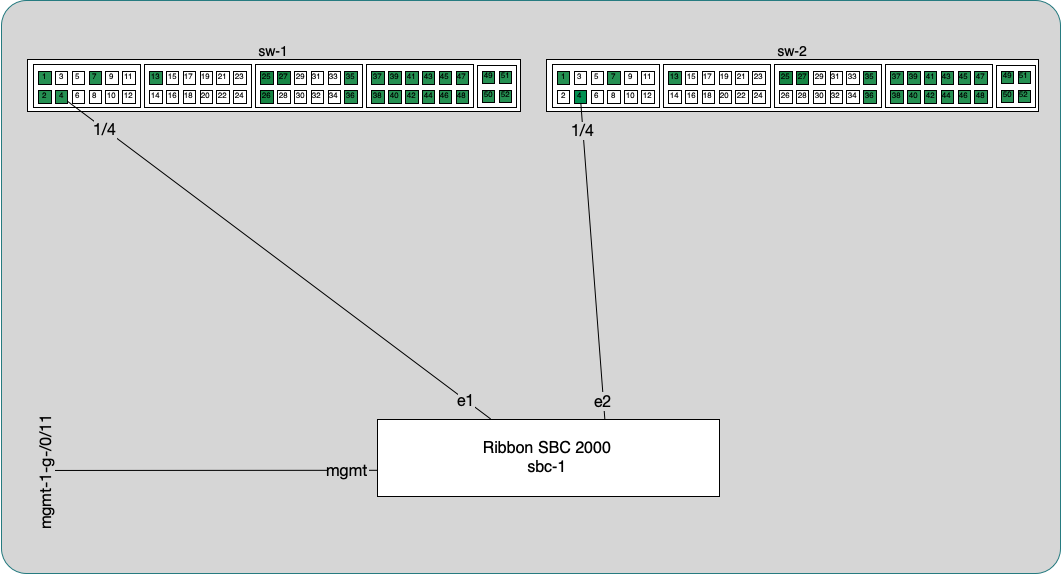

In both cases, the switch to which the SBC connects is part of a VPC pair. Devices and servers are typically dual-homed with a LACP/802.3ad MLAG to both switches to allow for failure or planned maintenance. Unfortunately, the Ribbon SBC2000 (formerly-named Sonus) devices we’re using do not support any type of link bonding. They do, however, have a feature called “Ethernet Redundancy for Failover” which is meant to address this use case.
Looking at the fine manual, it describes the feature succinctly:
Ethernet Redundancy for Failover
Ethernet redundancy on the SBC 1000/2000 supports continued operation of the SBC if failures occur regarding the underlying Ethernet service, such as:
- Ethernet switch malfunction
- Ethernet port malfunction
It goes on to elaborate on the deployment model, which I can summarize in more networking-focused terms and adding some points garnered from testing:
- This is a L2 feature; both ports must be in same subnet/VLAN.
- When the SBC detects failure on the active port, it will failover to the standby port with a gratuitous ARP.
- The SBC2000 supports a maximum of two failover pairs on separate ports, as the device has four physical ports (in addition to one oob management port).
- This feature is not supported on tagged 802.1q ports.
- The SBC will not “fail-back” when service to the original port is restored.
By offering a standby Ethernet port to an active port, the SBC
1000/2000 allows SBC traffic to be re-directed from a primary Ethernet
switch to an alternate Ethernet switch (within the same subnet)
that is pre-configured (by the enterprise) with the same network
connections as the primary Ethernet switch. The alternate switch
is assumed capable of recognizing the introduction of live traffic
to/from the SBC (over the standby Ethernet port) and to recover the
outbound/inbound connections to the rest of the network. Ethernet redundancy includes: The Ethernet redundancy feature does not support load balancing,
and does not guarantee SBC availability.
full details from the manual
By offering a standby Ethernet port to an active port, the SBC 1000/2000 allows SBC traffic to be re-directed from a primary Ethernet switch to an alternate Ethernet switch (within the same subnet) that is pre-configured (by the enterprise) with the same network connections as the primary Ethernet switch. The alternate switch is assumed capable of recognizing the introduction of live traffic to/from the SBC (over the standby Ethernet port) and to recover the outbound/inbound connections to the rest of the network.
Ethernet redundancy includes:
The Ethernet redundancy feature does not support load balancing, and does not guarantee SBC availability.
In the current deployment, each SBC is configured on two different networks (plus the management network), a “telecom” network and a “DMZ” network. Since these were previously both trunked over the single interface, they had to be moved to separate (untagged) access interfaces in order to use the failover feature. Fortunately for us, the device has (just) enough physical ports for this configuration.
Proof of concept
As a first step in the process, we ran test cables to two unused ports on one of the SBCs and I configured them as a failover pair on a testing network. Failover was less than a second, adequate for not dropping a voice call.
To get more precise numbers of the failover time, I initiated a “flood
ping” from a nearby host. The man page for
-f Flood ping. For every ECHO_REQUEST sent a period ``.'' is printed, while for ever ECHO_REPLY received a backspace is printed. This provides a rapid display of how many packets are being dropped. If interval is not given, it sets interval to zero and outputs packets as fast as they come back or one hundred times per second, whichever is more. Only the super-user may use this option with zero interval. [...] -i interval Wait interval seconds between sending each packet. The default is to wait for one second between each packet normally, or not to wait in flood mode. Only super-user may set interval to values less 0.2 seconds.
This rudimentary approach allowed me to get better estimate of what the
failover time would be. Normally, with no packet loss, there are no
.) printed. During the failover, as packets are dropped, the dots
are printed every 0.01 seconds until service is restored. Counting
the number of dots gives a good estimate of the failover time.
$ sudo ping -i 0.01 -f sbc-1 PING sbc-1 (192.0.2.1) 56(84) bytes of data. ..........................................................^C --- sbc-1 ping statistics --- 2093 packets transmitted, 2030 received, 3% packet loss, time 25078ms rtt min/avg/max/mdev = 0.440/0.612/1.814/0.083 ms, ipg/ewma 11.987/0.607 ms
Once this proof-of-concept test was complete, we arranged for a datacenter tech to properly run and label three additional cables to each SBC. Then we scheduled a maintenance window, as the network reconfiguration will be service-impacting.
Back-up SBC configuration
The first step in the migration plan is to back up the configuration, in case we needed to revert the changes. Though we didn’t need this to restore, it proved useful later. In the web GUI, select the “Tasks” tab, and “Backup/Restore Config”. “Ok” will download a tar file to your local machine.
Remove conflicting configuration
The logical VLAN interfaces cannot be deleted directly. The VLAN itself must be deleted by selecting the “Settings” tab and navigating to “Node Interfaces”, “Bridge”, “VLAN”. From there, select the checkbox(es) and click on the red “X”.
This didn’t work on my first try, as there are references elsewhere to these VLANs. I eventually hunted them all down:
- “Port Ethernet 1” needed both VLANs removed from the trunk
- “Port ASM 1” needed its “Default Untagged VLAN” changed
- Each “Signaling Group” needed its “Signaling/Media Source IP” changed
The first two were obvious once I thought about it, but it too me some
time to discover the last. After poking around the web interface
looking for references, I remembered that the full XML config is in
the backup file. I loaded up
backupconfig.xml into my editor,
searched for references to the VLAN id, and found a match under
<Token name="SignalingGroups">. Bingo!
Configure the switches
Next, I reconfigured the network switches. These are Cisco Nexus switches, using port-profiles:
port-profile type ethernet host-sbctelecom-eth switchport access vlan 314 spanning-tree port type edge description session border controller telecom network state enabled port-profile type ethernet host-sbcdmz-eth switchport access vlan 334 spanning-tree port type edge description session border controller dmz network state enabled
default int e1/4, e1/12 ! int e1/4 inherit port-profile host-sbctelecom-eth description sbc-1-e1 no shutdown int e1/12 inherit port-profile host-sbcdmz-eth description sbc-1-e3 no shutdown
default int e1/4, e1/12 ! int e1/4 inherit port-profile host-sbctelecom-eth description sbc-1-e2 no shutdown int e1/12 inherit port-profile host-sbcdmz-eth description sbc-1-e4 no shutdown
On the SBC, I set the “Admin State” to enabled on all the new ports to verify that link negotiated correctly. I verified against the cabling plan by manually shutting down each port on the switch side and verifying that “Service Status” changed to “Down” on the corresponding SBC port.
Configure SBC IP
The IP for each failover pair is configured on the logical interface for the that pair’s primary port. In our case, ports “Ethernet 1” and “Ethernet 2” have their IP configured under “Node Interfaces”, “Logical Interfaces”, “Ethernet 1 IP”. From here, set the “Description” to the network name, “Admin State” to “Enabled”, and “Primary Address” and netmask/prefix for the hosts IPv4 and IPv6 addresses on that network. I repeated the process for the other pair, under “Ethernet 3 IP”.
Configure SBC Ports
For each failover pair, I navigated to “Settings”, “Node Interfaces”, “Ports”, and selected the primary port in the pair. Under “Networking”, I set the “Frame Type” to “Untagged”, and the “Redundancy” to “Failover”, selecting the corresponding “Redundant Port”.
Testing was relatively straightforward. Initially I just pinged the
interface(s), executed a
shut on the primary interface, and observed
the traffic shifting.
On the first device one interface in the pair , “Ethernet 1”, didn’t work as expected. I could see the MAC address in the L2 table on the upstream switch, and the next-hop router would receive ARP replies and correctly populate its ARP table, but the device would not respond to pings. When I failed over to the other interface, “Ethernet 2”, pings worked. I initially thought it to be an issue on the Cisco side, as I’ve had experiences in the past (with enhanced vPC and fabric extenders) where reconfiguring an interface didn’t always “take”. In this case, it wasn’t the Cisco side. As a last resort, I changed the ports “Redundancy” to “None”, applied the change, and then changed it back to “Failover”. That fixed the issue. Despite following the same steps, the other SBC didn’t experience this issue.
This maintenance was coordinated in a Teams channel. Two of the other engineers on the call set up a new call to each other through one of the SBCs. They chatted while I failed the interface back and forth, and neither could notice any interruption or degradation. Success!
