Overview

An application problem was brought to me to troubleshoot. From the symptoms I observed, I was confident that the problem was an intermittent issue with the SAAS provider’s DNS. To prove this assertion, I needed to collect a packet capture of failed query. This post details the process I went through to collect that data.

Investigation

When the problem was reported, we saw our recursive nameservers returning NXDOMAIN in response to queries for the domain, when manual queries (with dig) directly to the provider’s nameservers returned valid data. As soon as the entry expired from the recursive nameserver’s cache, it was queried anew, and the reported issue was temporarily resolved. Based on this, my theory was that one of the SAAS provider’s – or their DNS provider’s – nameservers was occasionally responding with a negative answer to the query. I wanted to capture this response packet to help isolate and fix the problem.

Filter

The problem only seemed to occur a couple times a day. It isn’t feasible to do a full packet capture for all DNS traffic on these servers for that length of time, so I needed a quick way to filter for only the domain(s) in question.

Capture Filter

My first thought was to use a capture filter. I quick search turned up a Stack Exchange post with an example, but that seemed a bit too complicated, especially since in this particular case there are multiple long domain names that I need to look for.

$ printf foo | xxd -p
666f6f
$ tshark -n -T fields -e dns.qry.name -f "src port 53 and $(awk '
    BEGIN{
      for(i=0;i<250;i++) {
        printf sep "(udp[%d]!=0&&((udp[%d:4]&0xffffff00)==0x666f6f00", i+20, i+20
        c = c "))"; sep = "||"
      }
      print c
    }')"

Display Filter

Wireshark (and tshark) have display filters that decode many different protocols – including DNS – and easily allow filtering DNS packets by query name. I started a local Wireshark session on my desktop and quickly determined a working filter for my use-case: dns.qry.name ~ ebscohost.com or dns.qry.name ~ eislz.com. This particular service was a chain of multiple CNAMEs, such as af-ehost-gateway-ehost-live-pi-external.ehost-live.eislz.com., and I wanted to capture anything within those two domains.

Local Wireshark session to determine display filter

Local Wireshark session to determine display filter

Failure

“Easy,” I said to myself. But, as soon as I tried it I realized that using a display filter in a single command that captures and displays isn’t supported.

$ tshark -w /tmp/ebscohost.pcap -s 1500 -i enp6s0 -Y 'dns.qry.name ~ ebscohost.com or dns.qry.name ~ eislz.com'
tshark: Display filters aren't supported when capturing and saving the captured packets.

Apparently, this used to work, but has been removed as part of some security refactoring.

Two Stages

At this point, I realized I would have to do this in two stages, one for capture and one for filtering. I opted to use tcpdump’s option (-C) for automatically rotating the save file based on size, and the post-rotate command (-z) option to run a filter and clean-up script after each rotation.

The filter and clean-up script, /tmp/dns_filter.sh:

#!/bin/bash

OUT="${1%%.*}.$(date +'%Y-%m-%d-%T').pcap"
FILTER='dns.qry.name ~ ebscohost.com or dns.qry.name ~ eislz.com'

tshark -s 1500 -r $1 -w $OUT -Y $FILTER

if [ $(tshark -r $OUT | wc -l) -eq 0 ] ; then
  rm $OUT
fi
rm $1

Apparmor

Unfortunately, I got an error on the first run.

$ tcpdump -ni enp6s0 -s1500 -C20 -w/tmp/ebscohost.pcap port 53 -z /tmp/dns_filter.sh
...
compress_savefile: execlp(/tmp/dns_filter.sh, /tmp/ebscohost.pcap) failed: Permission denied.

After double-checking file permissions, I looked in /etc/apparmor.d/usr.sbin.tcpdump:

...

  # for -z
  /{usr/,}bin/gzip ixr,
  /{usr/,}bin/bzip2 ixr,

...

By default, this Debian installation only permits gzip to be run by tcpdump. I initially started adding my script (and all the binaries it calls) to the list, but in the end opted to just change the apparmor policy from “enforce” to “complain” for tcpdump:

$ sudo apt install apparmor-utils
...
$ sudo aa-complain /usr/sbin/tcpdump
Setting /usr/sbin/tcpdump to complain mode.

Success

With all that done, we just need to run the capture and it will rotate the file when it reaches the set size and run the filter script. The filter script uses tshark to filter out only queries/responses matching those domains and deletes the original capture file. It also removes its output file if there were no matching records.

sudo tcpdump -ni enp6s0 -s1500 -C20 -w/tmp/ebscohost.pcap port 53 -z /tmp/dns_filter.sh &

After running for a while:

$ ls -l /tmp/ebscohost.*
-rw-r--r-- 1 root root     1392 Oct 28 10:25 /tmp/ebscohost.2021-10-28-10:25:30.pcap
-rw-r--r-- 1 root root     2056 Oct 28 11:21 /tmp/ebscohost.2021-10-28-11:21:53.pcap
-rw-r--r-- 1 root root     1688 Oct 28 12:46 /tmp/ebscohost.2021-10-28-12:46:01.pcap
-rw-r--r-- 1 root root      428 Oct 28 14:55 /tmp/ebscohost.2021-10-28-14:55:45.pcap
-rw-r--r-- 1 root root     2532 Oct 28 16:15 /tmp/ebscohost.2021-10-28-16:15:34.pcap
-rw-r--r-- 1 root root      424 Oct 28 16:25 /tmp/ebscohost.2021-10-28-16:25:18.pcap
-rw-r--r-- 1 root root 14643200 Oct 28 16:37 /tmp/ebscohost.pcap460

Analysis

Now I have a bunch of individual capture files. I can concatenate them using mergecap from the wireshark package, copy the result to my local machine and load it up in Wireshark.app for analysis.

mergecap -a -w nscache1-ebscohost.pcap -s1500 /tmp/ebscohost.*.pcap

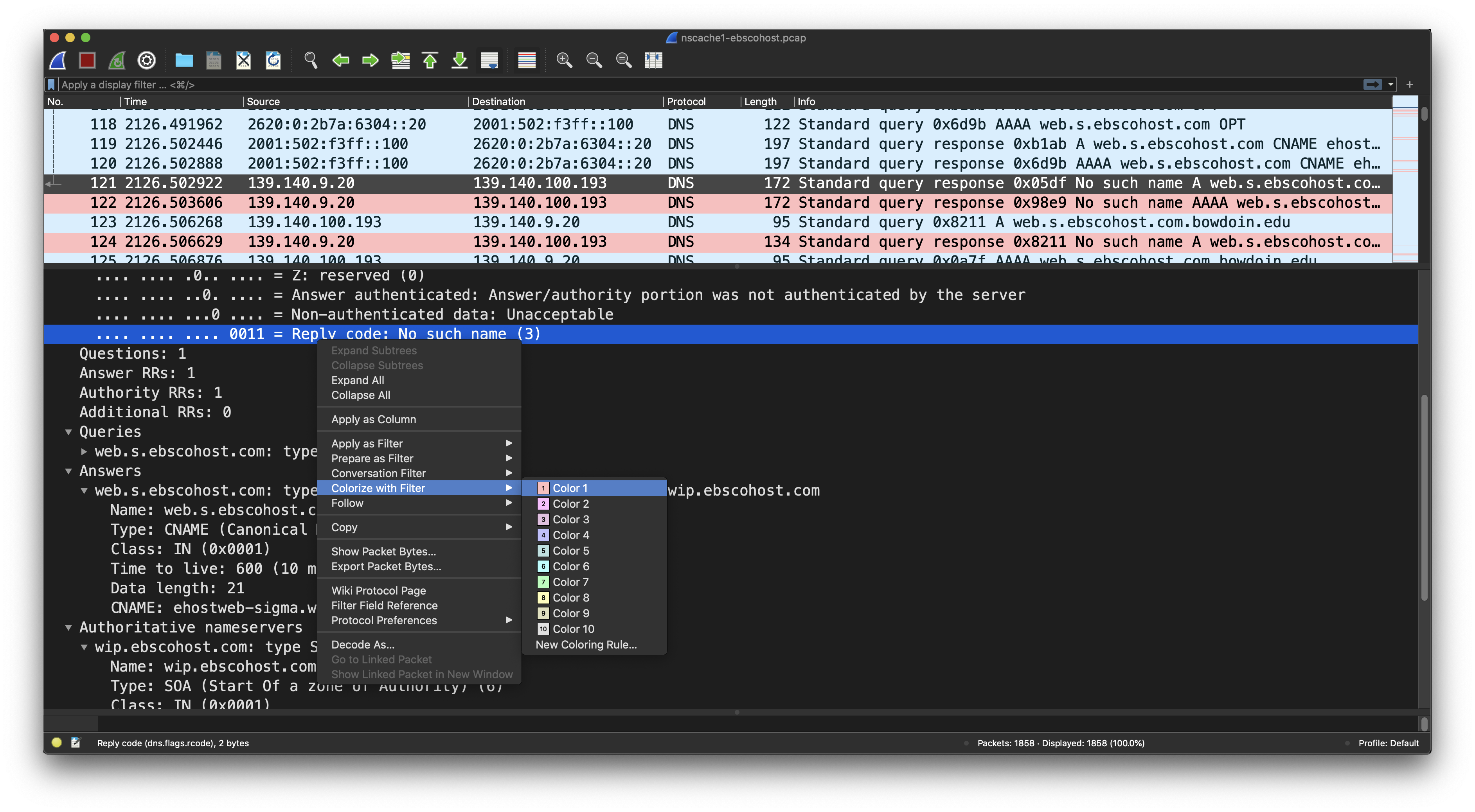

I can filter out the NXDOMAIN responses by setting a display filter dns.flags.rcode == 3 or can just colorize them (so I can see them in relation to the other traffic) by right-clicking on the “No such name” line in one of the packet decodes, selecting “Colorize as Filter” and choosing a color.

Setting a colorize filter in wireshark

Setting a colorize filter in wireshark

Conclusion

In less than a day of watching, we were able to get a capture of the DNS response. The provider acknowledged the problem, gave us a workaround (a different subdomain to use), and is working on a more permanent solution.

A Better Approach

I posted this to twitter, and @netresec responded with a comment suggesting another approach.

I had already tried something like this but dismissed it because when I tried it the resulting .pcap files were truncated, causing data loss. The output file was always an increment of 4k, so I assumed that this was due to the way tcpdump buffered data when writing to the pipe.

Wireshark error message

Wireshark error message

I didn’t remember if I had tried the -U option, so I tried it again. It worked perfectly on my macOS install (with stock tcpdump and wireshark/tshark installed via Homebrew), but failed as before when I ran it on the actual server.

I spun up a few different docker containers to test and found that Debian buster exhibits this problem, but bullseye works with the single pipeline. This is a much more elegant solution, which I will definitely use in the future:

sudo tcpdump -U -ni enp6s0 -s1500 -w- port 53 | tshark -s1500 -w /tmp/ebscohost.pcap -r- -Y 'dns.qry.name ~ ebscohost.com or dns.qry.name ~ eislz.com'

I suspect it is an issue with the version of tcpdump or libpcap. Rather than investigating further, I’ll spend the time planning and testing an OS upgrade of the servers.

For the record, these are the versions I tested:
OS Version App versions Works
macOS 10.15.7 tcpdump 4.9.3 – Apple version 90.100.2
libpcap 1.9.1
TShark (Wireshark) 3.4.9 (v3.4.9-0-g365e236f5efe)
Yes
Debian buster tcpdump 4.9.3
libpcap 1.8.1
TShark (Wireshark) 2.6.20 (Git v2.6.20 packaged as 2.6.20-0+deb10u1)
No
Debian bullseye tcpdump 4.99.0
libpcap 1.10.0 (with TPACKET_V3)
TShark (Wireshark) 3.4.4 (Git v3.4.4 packaged as 3.4.4-1)
Yes
